Okayo DL-8H Wireless Microphones (2-pack) + Okayo SRX-800 Multi-frequency Receiver

3-year warranty.
We offer full technical support, updates, and system service even after the warranty period expires.

The set consists of a two-channel, compact stationary receiver and 2 wireless condenser microphones.

The Okayo SRX-800 with the DL-8 wireless transmitter is an excellent entry into the world of wireless audio transmission.
Why choose this system?
Well, the SRX-800 operates in the digital bands of 823 MHz ~ 832 MHz and 863 MHz ~ 865 MHz, which are far from the bands used by popular microphone systems and Wi-Fi. This provides a secure microphone system free from interference and crackling, which commonly plague standard UHF wireless systems.

Okayo offers the latest wireless UHF band in digital technology, ensuring high-quality sound combined with low latency and distortion-free performance. It also features a very clear LCD display with essential user information, and the SYNC function helps effortlessly select an interference-free channel and synchronize the microphones. What’s more, the compact size of the devices makes them easy to place.

This system offers extremely simple operation and instant channel selection. Two microphone sets can be used simultaneously without any issues with frequency or group channel settings. You don’t have to worry about microphones interfering with each other. Furthermore, up to 20 wireless microphones (10 receivers) can be used in the same area without concern for mutual interference in audio transmission!

Set includes:
SRX-800 two-channel stationary receiver with 6.3 mm jack audio cable and rack-mount accessories
2 DL-8H wireless microphones
Set of alkaline batteries

Okayo SRX-800 Receiver Features:
Automatic scanning and synchronization mode for receiver to transmitter channel
One receiver supports two microphones
Two combined UHF frequency bands 823 MHz ~ 832 MHz and 863 MHz ~ 865 MHz – 42 selectable channels
2 audio output jacks – XLR for amplifier / 6.3 mm jack for mixer
1/4 metal housing with two antennas
Backlit LCD display for easy reading of essential information
Signal strength indicator
Transmitter battery status display
Freestanding receiver with rack-mount option

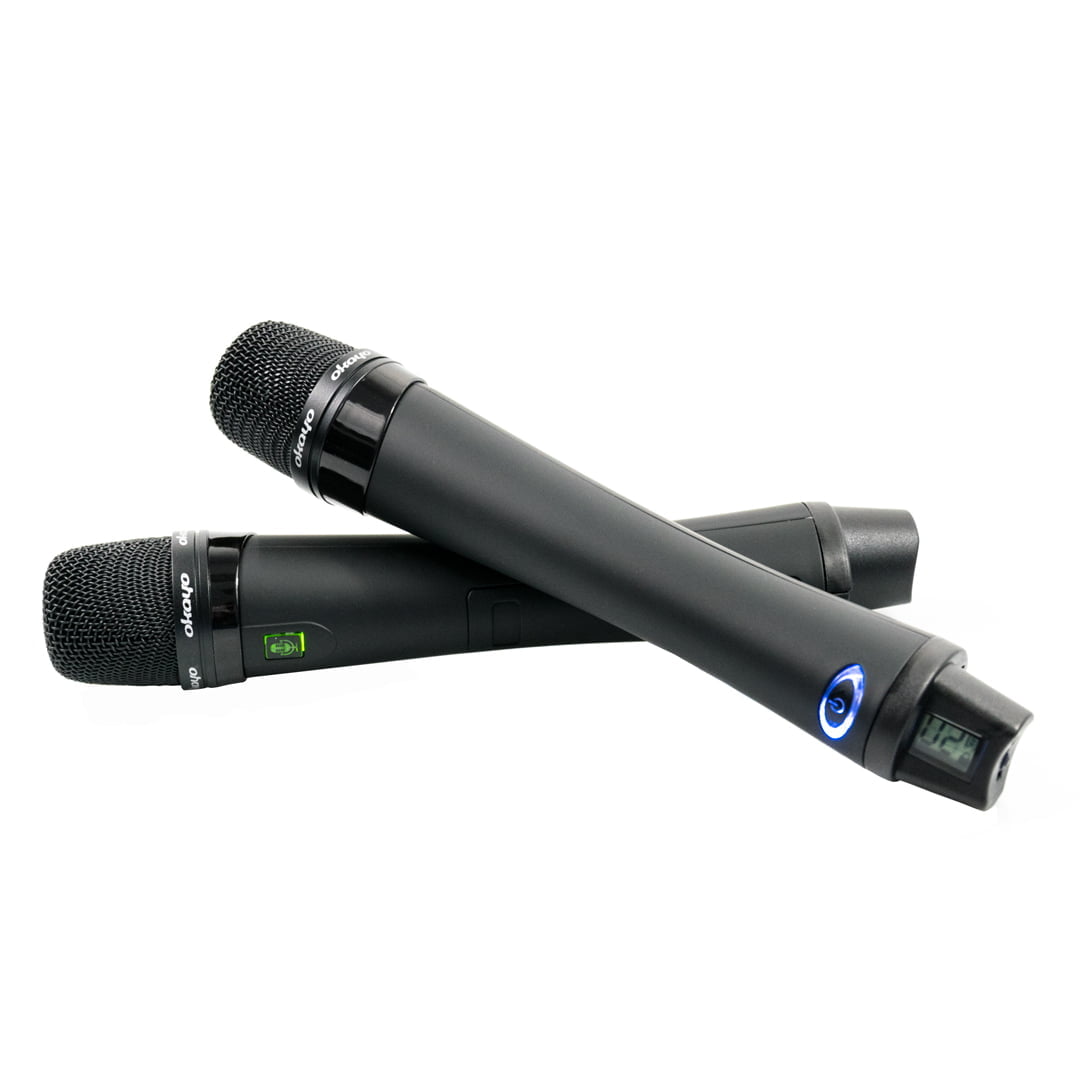

Okayo DL-8H Wireless Microphone Features:
42 radio channels in combined band 823 MHz ~ 832 MHz + 863 MHz ~ 865 MHz
Built-in condenser capsule protected by a mesh grille
Backlit LCD display
Automatic synchronization with receiver
Powered by AA alkaline batteries or Ni-MH AA rechargeable batteries (dedicated HDC-502 desktop charger available)
2 microphone modes available (Push-To-Bolt and Push-To-Talk)
Extremely lightweight and comfortable
Professional design

Okayo SRX-800 Technical Specifications:
Frequency band: 823 ~ 832 MHz & 863~ 865 MHz
Number of channels: 42
Emission modulation: 4 GFSK
T.H.D. (Total Harmonic Distortion): <3 % SNR (Signal-to-Noise Ratio) >75 dB
Frequency response: 100 ~ 8000 Hz
Latency <10 ms
Unbalanced output 6.3 mm: Hi (High): 1250±100 mV / Low: 50±100 mV
Balanced XLR output: 650±50 mV
Transmission range: Hi: 70+ meters / Lo: 50+ meters
Operating temperature range: -10°C ~ 60°C
Dimensions: (W x D x H): 117 x 190 x 50 mm (without antennas)
Weight: 640±30 g

Okayo DL-8H Technical Specifications:
Microphone type: Condenser
Capsule type: Cardioid
Polar pattern: Unidirectional
Frequency band: 823 ~ 832 MHz & 863~ 865 MHz
Number of channels: 42
Emission modulation: 4 GFSK
T.H.D. for 1 kHz (Total Harmonic Distortion): <1.5 % Signal-to-Noise Ratio: >75 dB
Frequency response: 130 ~ 7000 Hz
Output power: 10 mW / 20 mW
Power supply: 2 x AA
Operating time: over 13 hours
Transmission range: Hi: 70+ meters / Lo: 50+ meters
Operating temperature range: -10°C ~ 60°C
Dimensions (D x H): 37 x 200 mm
Weight (without batteries): 90±5 g
